Home » Portfolios » QuikWater Heating System for an Industrial Application

When it was time to update their outdated and inefficient boiler system, an industrial customer approached Custom Thermal Applications to engineer a well-designed solution that would meet their needs now and into the future.

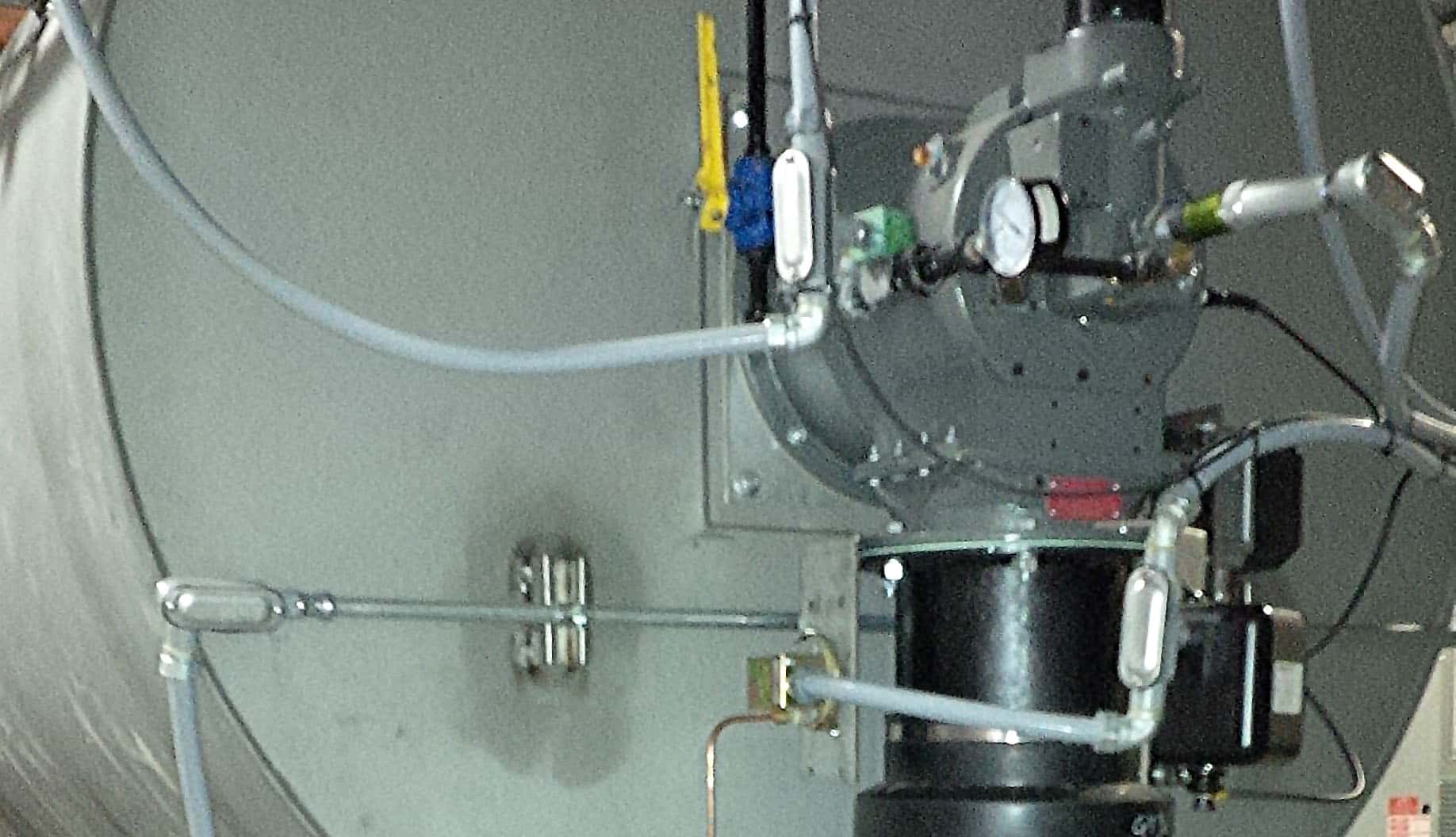

As experts in the field, we assessed their application and recommended installing three direct fired water heating systems, which would supply them with the large volume of hot water they needed while reducing their overall energy and operating expenses.QuikWater Heating System for an Industrial Application

The two QS 3500 systems operate from a 50°F cold water inlet and supply water heated to 160° on-demand. One features an integrated storage tank, while the other was customized for use with an external 700 gallon storage tank. The single QS 2500 system also features an integrated storage tank and supplies water heated to 140°F. Both systems are fueled by natural gas and operate with discharge pressure of 60 psi. Offering up to 99% thermal efficiency, these systems are built from stainless steel for a long service life, require very little maintenance, and occupy a very small footprint.

For more information about this project, or to discuss how a custom engineered direct contact water heating solution can save you money, contact us today.

Product Description
This QuikWater system is used to supply large volumes of hot water for an industrial/commercial application.
Capabilities Applied/Processes

Overall Part Dimensions
Storage Tank (Usable): 700 gallons
Integral Tank: 775 gallons or 1,050 gallons
Material Used
Stainless Steel
Natural Gas
Unbeatably High Thermal Efficiency (99%)
Single Pass (on demand) Heating
Low Maintenance Heating
QS 2500 & one QS 3500: Tankless (Uses External Storage Tank)
QS 3500: Stand Alone with Integral Tank
Electrical Power
575 Volts, 3 Phase, 60 Cycles
Water Information
180°F (82°C) at 99% Efficiency
200°F (93°C) at 98% Efficiency
Discharge Pressure: 60 PSI
Cold Water Inlet: 50°F
Hot Water Outlet
Normal: 140°F (QS 2500)
Care Giving Institutions: 160°F (QS 3500)
Product Name
QS 2500 & QS 3500 QuikWater Direct Contact Water Heater
